Description

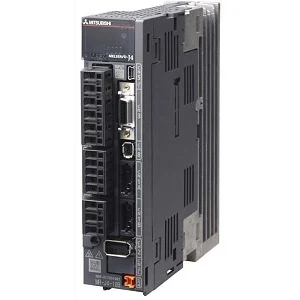

Mitsubishi MR-J4-350B-RU AC Motion Servo Drive Amplifier MRJ4350BRU
- Extended Product Type: Servo Motor
-
- Product ID: MR-J4-350B-RU
- Mitsubishi Type Designation: Servo Motor
Description of Mitsubishi MR-J4-350B-RU AC Motion Servo Drive Amplifier
Mitsubishi MR-J4-350B-RU AC motion servo drive / amplifier with built-in regenerative resistor + safety unit compatibility – Mitsubishi Electric (MELSERVO J4 – MR-J4 series) – Rated output 3500W / 3.5kW – Rated current 17A – Supply voltage 200Vac-240Vac (200V class; 220Vac / 230Vac) (Single-phase input (2P) or 3-phase input (3P)) – with SSCNET III/H communication capability – IP20 – rated for 0…+55°C ambient – equivalent to MRJ4350BRUSpecifications of MR-J4-350B-RU AC Motion Servo Drive Amplifier
- Primary brand: Mitsubishi Electric
- Main function: AC servo drive
- Product series / family name: MELSERVO J4 series
- Sub-range name: MR-J4 series
- Functions: AC motion servo drive / amplifier, positioning mode. sine wave PWM control/current control method, point table method, Indexer (turret) method, program method, 2-channel analog monitor, Safe torque off (STO), fully closed loop control, load-side encoder interface, speed control mode, torque control mode, advanced vibration suppression control II, adaptive filter II, robust filter, auto tuning, one-touch tuning, tough drive function, drive recorder function, machine diagnosis function, power monitoring function, super trace control, lost motion compensation
- Design: built-in dynamic brake. built-in regenerative resistor, safety unit compatibility, 2-wire or 4-wire type communication method, forced ventilation cooling, SSCNET III/H
- Supply voltage (AC): 380Vac-480Vac (400V class; 400Vac / 415Vac / 440Vac)
- Supply voltage (DC): 283Vdc-340Vdc
- Type of network: 3-phase input (3P) or DC input
- Rated current: 8.6A
- Rated active power (kW): 3500W / 3.5kW
- Protection functions: overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder fault protection, regenerative fault protection, under voltage protection, instantaneous power failure protection, overspeed protection, excessive error protection, magnetic pole detection protection, linear servo control fault protection
- Communication protocol: RS-422, RS-485
- Digital inputs: 1 x digital input (24Vdc; sink/source) (EM2)
- 1 x digital input (24Vdc; sink/source) (LSP)
- 1 x digital input (24Vdc; sink/source) (LSN)
- 1 x digital input (24Vdc; sink/source) (DOG)
- 1 x digital input (24Vdc; sink/source) (TPR1)
- 1 x digital input (24Vdc; sink/source) (TPR2)
- Digital outputs: 1 x digital output (rly. contact type) (ALM)
- 1 x digital relay output (MBR)
- 1 x digital output (rly. contact type) (INP)
- Analog outputs: 1 x analog output (-10…+10Vdc) (MO1)
- 1 x analog output (-10…+10Vdc) (MO2)
- Degree of protection: IP20
- Ambient air temperature for operation: 0…+55 °C
- Ambient air temperature for storage: -20°C…+65 °C
- Current consumption: 7.9A input
- Power consumption: (drive auxiliary power consumption) 45 W
- Technical compatibility with: conversion unit SSCNET of MR-J2S-[]B, MR-J2S-[]B series
- Equivalent to: MR-J4-350B-RU
- Order code / Manufacturer SKU: MRJ4350BRU
- Manufacturer description: AMP 3.5KW 400V J2S SSCNET CONVERSION
- Compliant with standard(s): CE marking, TUV Rheinland, cULus, UL, KC, EN61800-5-2, EN61800-5-1, EN61800-3, EN ISO 13849-1 PLe Cat3, EN62061, SILCL3, IEC61508-5-2, EN50581, UL508C, CSA, KC, EAC
Recommended accessories: compatible with servo motors
HG-JR1534 (5.4A)
HG-JR2034 (5.4A)
HG-SR3524 (7A)
HG-JR3534 (8.3A)
HG-JR1534W0C (5.4A)
HG-JR2034W0C (5.4A)
HG-SR3524W0C (7A)
HG-JR3534W0C (8.3A)
Benefits
high-speed serial communication: A/B/Z-phase differential input signal
