Siemens 3RV2721-4CD10 Circuit Breaker 22A 3RV27214CD10

Description

Siemens 3RV2721-4CD10 Circuit Breaker 22A 3RV27214CD10

• Extended Product Type: Circuit Breaker
• Product ID: 3RV2721-4CD10
• Siemens Type Designation: Circuit Breaker

Description of Siemens 3RV2721-4CD10 Circuit Breaker

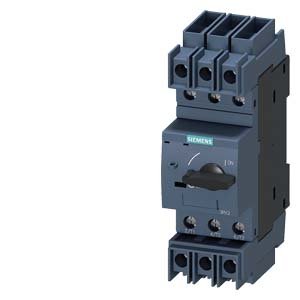

Siemens 3RV2721-4CD10 circuit breaker frame size S0 for system protection with approval circuit breaker UL 489, CSA C22.2 no. 5-02 thermal overload release 22 A short-circuit release 286 A screw terminal standard switching capacity. Equivalent to: 3RV27214CD10

Specification of Siemens 3RV2721-4CD10 Circuit Breaker

• Product Lifecycle: PM300:Active Product
• Product Group: 5332
• Product class: A: Standard product which is a stock item could be returned within the returns guidelines/period.
• Brand / Series: Siemens SIRIUS 3RV2721
• Frame Size: Size S0
• Current Rating (Thermal Overload Release): 22 A
• Short-Circuit Release (Magnetic): 286 A
• Number of Poles: 3-pole
• Max AC Voltage Rating: Up to 690 V AC
• Terminals: Screw connections
• Mounting: DIN rail mounting
• Approvals: UL 489, CSA C22.2 No. 5-02, CE, CCC, EAC
• Lifecycle Status: Active (Made in Germany)
• EAN: 4011209767591
• UPC: 662643922783
• Commodity Code: 85362010
