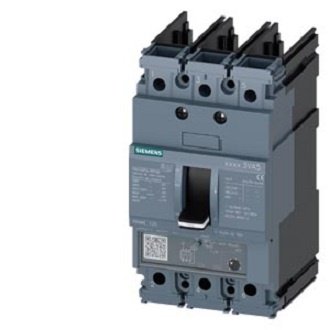

Siemens 3VA5160-6EC31-0AA0 Circuit Breaker 3VA51606EC310AA0

Description

Siemens 3VA5160-6EC31-0AA0 Circuit Breaker 60 A 3VA51606EC310AA0

• Extended Product  Type: Circuit breaker
• Product ID: 3VA5160-6EC31-0AA0
• Siemens Type Designation: Circuit breaker

Description of Siemens 3VA5160-6EC31-0AA0 Circuit Breaker

Siemens 3VA5160-6EC31-0AA0 circuit breaker 3VA5 UL frame 125 breaking capacity class H 65kA @ 480V 3-pole, line protection TM230, FTAM, In=60A overload protection Ir=60A fixed short-circuit protection Ii=5…10 x In without connection. The Siemens 3VA5160-6EC31-0AA0 is a 3-pole, 60A molded-case circuit breaker (MCCB) from the SENTRON 3VA5 UL/IEC series. Equivalent to: 3VA51606EC310AA0

Specifications of Siemens 3VA5160-6EC31-0AA0 Circuit Breaker

• Product family: SIRIUS 3RT contactors, 3-pole, up to 250 kW
• Product Lifecycle (PLM): PM300: Active Product
• Brand & Series: Siemens SENTRON 3VA5 (Frame 125)
• Poles: 3-pole (3P3d)
• Rated Current ((I_{n})): 60 A (fixed (I_{r}))
• Trip Unit: TM230 thermal-magnetic with fixed thermal and adjustable magnetic settings ((I_i = 300–600text{ A}))
• Interrupting / Breaking Capacity (UL 489):
  • • 150 kAIC at 240V AC
    • 65 kAIC at 480V AC
    • 25 kAIC at 600Y/347V AC

• Operational Voltage: Up to 690V AC / 500V DC
